Introducing the NEW Sensaggio SM Series Absolute Pressure Sensor measuring 0-70 bar with 4…20mA output

Introducing the NEW Sensaggio SM Series Absolute Pressure Sensor measuring 0-70 bar with 4...20mA output

The Sensaggio SM Series Pressure sensor is designed for the industrial/hydraulic markets. It is manufactured to work with all liquids and gases that are compatible with the wetted materials. The sensor, based on piezoresistive ceramic technology, features a number of configurable options including process connections, pressure ranges and wetted materials

The Sensaggio pressure sensor offers a low impedance current output which provides excellent electrical noise immunity (EMI/RFI), ideal for transmitting signal over very long distances.

FEATURES

Performance
Resistant to extreme temperatures, excellent hysteresis, high accuracy, fast response time and excellent surge resistance
Compatibility
Suitable for most media, HVACR refrigerant gases, also for new gas HFO 1234ze and related oils
Resistance
Suitable for critical application with aggressive fluids
Flexibility
Customizable with different materials, connectors and transfer functions
Compliance
Compliant with RoHS and REACH Regulations

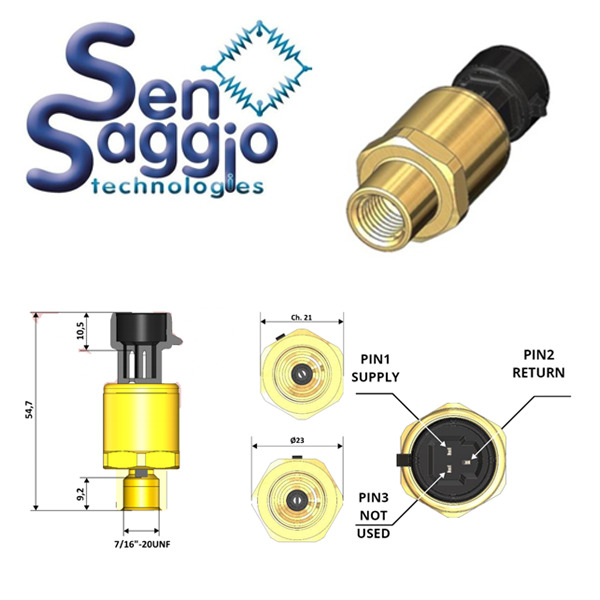

Body
Connector Body: Brass/SS AISI
7/16 UNF female connection
Packard connector

APPLICATIONS

  • HVAC-T and transportation (bus, truck, ships, trains...)
  • Oil system pressure and Fuel system pressure
  • HVAC after market
  • Industrial automation
  • Process monitoring
  • Hydraulic systems
  • Refrigeration
  • Water monitoring
  • Fluids monitoring
  • Methane gas control
